Control from your phone
Switch the system on and off remotely, set temperature and schedules and get alerts, from the app for iOS and Android. A home Wi-Fi network is needed.
1 / 10
Dual-energy solar water heater with Wi-Fi

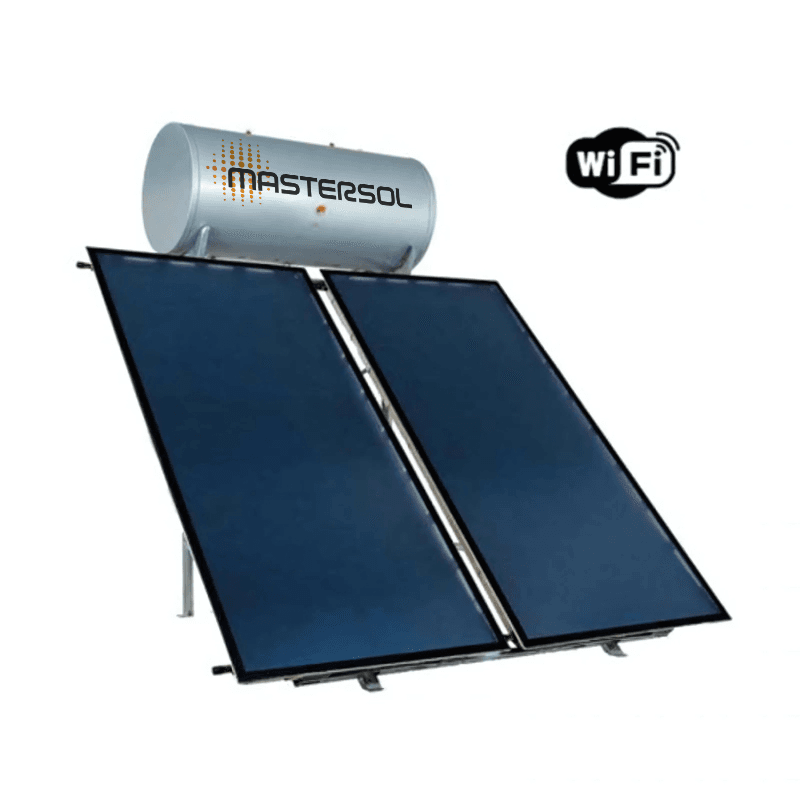

Mastersol Plus WiFi Solar Water Heater 200 lt, Selective Collectors 4.0 m², Dual EnergyCode: MSPL 200-4
Collectors with a one-piece pressed aluminium casing and a 25-year warranty. Control and alerts from your phone, over Wi-Fi.
Mastersol Plus WiFi MSPL120–300 models
- Delivery across GreeceBy courier or freight, depending on size. The cost is shown at checkout, once you enter an address.
- Pick-up in Patras171 Ag. Ioanni Pratsika St · Mon–Fri 08:30–17:00, Sat 09:00–14:00
- Installation by a partnerPartner installers across Greece.
- 5 years cylinder (10 with the extension kit), 25 years collectors warranty from ClimaventisSpare parts and service directly from us.
Installer or retailer? Log in for trade prices
Description
The solar water heater you control from your phone.
The Mastersol Plus combines collectors with a one-piece pressed aluminium casing with control from your phone over Wi-Fi. The casing has no joints or seams, for better sealing, corrosion resistance and lower heat losses. Plus collectors have a 25-year warranty.
From the app on your phone, on iOS and Android, you switch the system on and off, set temperature and schedules and get alerts. A home Wi-Fi network is needed; features may vary with the app version.
The collector and the jacket run on a closed circuit with antifreeze, for frost resistance down to −47°C. The tank has Bayer Double Duro Glass enamel, a magnesium anode, 5cm of polyurethane insulation and a 3.5kw electric element.
It is dual energy: the sun heats the water and, when needed, the 3.5kw electric element.
The range has eight models, from 120 litres with 2 m² to 300 litres with 5 m². It also comes in triple energy, for a connection to central heating.
Mastersol solar water heaters carry an A+ energy label and are CE and Solar Keymark certified.
Pressed casingOne piece, no joints or seams.
25-year warrantyOn the Plus collectors.
Wi-FiControl and alerts from your phone.
Closed circuitWith antifreeze, down to −47°C.
Sun and electricityA 3.5kw element as a second source.
Made in GreeceTank with Double Duro Glass enamel.
Highlights
What makes the difference.
What every Plus comes with, from the Wi-Fi to the collector casing.
One-piece pressed casing
The back and sides of the collector are one piece of pressed aluminium, with no joints or seams. That gives better sealing, corrosion resistance and lower heat losses.

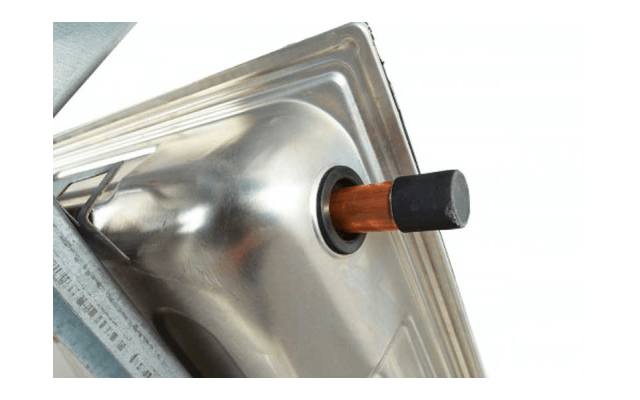

Copper risers
The selective aluminium-titanium absorber covers the whole surface, on Ø22 & Ø8 copper risers that come out of the casing for the connection. 4cm of rock wool insulation.
3.2mm tempered glass
The safety glass stands up to hail and heavy rain. The circuit runs on antifreeze, for frost resistance down to −47°C.

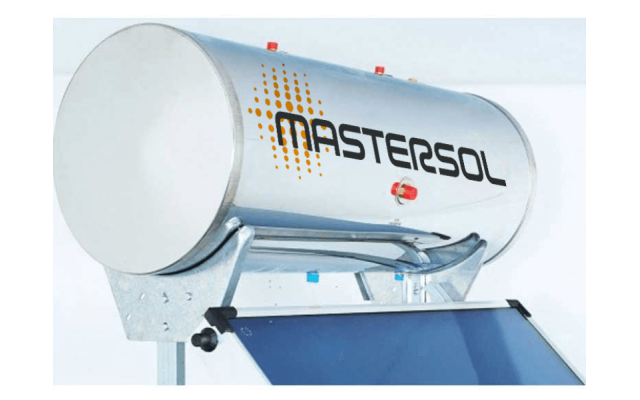

Tank with heat-exchange jacket
2.5 or 3.0mm European steel depending on the model, Bayer Double Duro Glass enamel, a magnesium anode and 5cm of polyurethane insulation. A 3.5kw electric element.
Closed circuit with antifreeze
The collector and the jacket are filled with antifreeze, so the system withstands frost down to −47°C. On top of the tank are the fill and vent points of the circuit and the seat of its safety valve (1.5-3 bar).
Compare the models
Eight sizes, one build.
All models have Plus collectors with a 25-year warranty and Wi-Fi. The litres, the collector area and the tank steel thickness change.
| Compare the models | MSPL120-2779.10 € | MSPL160-2795.79 € | MSPL160-2,5829.19 € | MSPL160-3990.57 € | MSPL 200-31,048.44 € | MSPL 200-41,151.95 €This model | MSPL 300-41,331.15 € | MSPL300-51,394.59 € |
|---|---|---|---|---|---|---|---|---|
| Tank · collectors | 120 lt · 2.0 m² | 160 lt · 2.0 m² | 160 lt · 2.5 m² | 160 lt · 3.0 m² | 200 lt · 3.0 m² | 200 lt · 4.0 m² | 300 lt · 4.0 m² | 300 lt · 5.0 m² |
| Collector dimensions | 1 collector, 2.0 × 1.0 m | 1 collector, 2.0 × 1.0 m | 1 collector, 2.0 × 1.25 m | 2 collectors, 1.5 × 1.0 m | 2 collectors, 1.5 × 1.0 m | 2 collectors, 2.0 × 1.0 m | 2 collectors, 2.0 × 1.0 m | 2 collectors, 2.0 × 1.24 m |
| Tank steel | 3.0mm European steel 1204 V.E. | 2.5mm European steel 1204 V.E. | 2.5mm European steel 1204 V.E. | 2.5mm European steel 1204 V.E. | 2.5mm European steel 1204 V.E. | 2.5mm European steel 1204 V.E. | 3.0mm European steel 1204 V.E. | 3.0mm European steel 1204 V.E. |
Manufacturer's data (mastersol.gr). Collector dimensions: height × width. "From" prices include VAT.
Technical specifications
All the numbers, in one table.
| Litres | |
|---|---|
| 200 lt (4-5 users) | |
| Solar Water Heaters | |
| Collector area | 4.0 m² |
| Collector dimensions | 2 collectors, 2.0 × 1.0 m |
| Collector efficiency | 95% ±2% |
| Collector frame | One-piece pressed aluminium casing |
| Collector insulation | Rock wool 4cm |
| Collector type | Selective aluminium-titanium, full plate, in a one-piece pressed aluminium casing |
| Energy Class | A+ |
| Inner tank lining | Double Duro Glass enamel (Bayer) to DIN 4753, fired at 830°C |
| Riser grid | Copper Ø22 & Ø8 |
| Tank capacity | 200lt |
| Tank connections | Heavy-duty brass |
| Tank insulation | Polyurethane 5cm, 42kg/m³ |
| Tank steel | 2.5mm European steel 1204 V.E. |
| Tank type | Closed circuit |
| Tank · collectors | 200 lt · 4.0 m² |
| Energy sources | Sun and electricity |
| Electric heating element | 3.5kw (Ø140 flange, 8 holes) |
| Collector glass | 3.2mm tempered safety glass |
| Heating | |
| Warranty | 5 years cylinder (10 with the extension kit), 25 years collectors |
Warranty & installation
We are here after you buy.
5 yearson the cylinder, serviced every 2 years
10 yearson the cylinder, with the extension kit and a yearly service
25 yearson the Plus collectors
1 yearon the electrical parts
The extension kit is an overheat valve (94°C / 6 bar), a 10 bar closed expansion vessel and an expansion vessel for the closed circuit. The warranty covers parts, not labour or transport, and does not cover the collector glass.
The system must be installed by a licensed plumber. The warranty form is filled in, signed and emailed to Mastersol (info@mastersol.gr), together with proof of each service.
Warranty terms → Warranty form (PDF, in Greek) →By a partner in your area
A partner installer does the site visit, the connection and the first start-up. Ask for a quote together with the product.
Contact us →Sure about the size?
Our engineers calculate your home's heat loss and confirm the choice. The first assessment is free.
Contact us →Before installing
- FrameFor a flat or a tiled roof: you choose the frame in the product options. Collectors (height × width): 2 collectors, 2.0 × 1.0 m.
- Wi-FiYou need a home Wi-Fi network and a compatible phone (iOS or Android).
- PlumbingHeavy-duty brass connections. You choose the assembly materials, with polyethylene or stainless steel pipe, when you order.
- ElectricsElectric element 3.5kw (Ø140 flange, 8 holes). Electrical parts have a 1-year warranty.
- InstallationBy a licensed plumber, with a service receipt. It is a condition of the warranty.
- ServicingEvery 2 years, replace the magnesium anode rod and the safety valves; every year for the 10-year warranty. Every year, check and top up the antifreeze.
- SummerMastersol recommends covering half of the collector area in summer, and all of it when you are away for more than 3 days.
Questions
Ask us before you buy.
Our technicians answer every question, from choosing to installing.
2610 334 389 info@climaventis.grWhich size do I need?
Mastersol sizes its systems for a normal use of 40 litres of hot water at 40°C per person. As a guide: 1 person, 100 litres with 1.5 m² anywhere in Greece. 2 people, 120 litres with 2.0 m² (1.5 m² is enough in southern Greece). 3 people, 120 litres with 2.0 m², or 160 litres with 2.0 m² in northern Greece. 4 people, 160 litres with 2.5 m² (2.0 m² in the south). 5 people, 200 litres with 3 m², or 4 m² in northern Greece. If you are not sure, call us.
What can I do over Wi-Fi?
From the app on your phone you switch the system on and off remotely, set temperature and schedules and get alerts. You need a home Wi-Fi network and an iOS or Android phone; features may vary with the app version.
Does the 25-year warranty cover the cylinder too?
No. The 25 years apply to the Plus collectors. The cylinder has 5 years, serviced every 2 years, or 10 years with the extension kit (94°C / 6 bar overheat valve, 10 bar closed expansion vessel, closed-circuit expansion vessel) and a yearly service. Electrical parts have 1 year.
What does dual energy mean?
That the water is heated in two ways: by the sun and, when needed, by the 3.5kw electric element. If you want your heating boiler to heat it too, there are triple-energy models.
Does it withstand frost?
Yes. It runs on a closed circuit with antifreeze and withstands temperatures down to −47°C. The antifreeze is checked and topped up every year, depending on the area.
Can it go on a flat roof and on a tiled roof?
Yes. The mounting frame comes in a flat-roof and a tiled-roof version; you choose it in the product options.
What servicing does it need?
Every 2 years the magnesium anode rod and the safety valves are replaced, or every year for the 10-year warranty. Every year the antifreeze is checked and topped up. The technician signs the warranty form and gives you a service receipt.
How are delivery and installation done?
The solar water heater ships by carrier throughout Greece; you see the shipping options and cost in the cart. A licensed plumber installs it, which is also a condition of the warranty; we can suggest a partner in your area.
Complete the installation
For the 10-year warranty.
The cylinder warranty becomes 10 years with an overheat valve (94°C / 6 bar), a 10 bar closed expansion vessel and an expansion vessel for the closed circuit, plus a yearly service. Here is the Mastersol closed-circuit expansion vessel.
