Triple energy, with two removable heat exchangers and an epoxy resin lining. From 1,500 to 9,000 litres.
Installer or retailer? Log in for trade prices
The Mastersol BLV2 is a vertical hot water cylinder with two removable heat exchangers: coils of 1″ steel pipe protected with epoxy resin. It is triple energy: the two heat exchangers connect to two heat sources, for example a boiler and solar collectors, and it also takes a 4 kW electric heating element, on request.
Inside, it is protected from corrosion with epoxy resin. So are its coils. A magnesium anode gives extra protection against corrosion.
It stands upright and has ports for recirculation and for an immersion thermometer, a cleaning flange and a magnesium anode. The insulation is removable soft polyurethane, 100 mm thick, with a soft PVC jacket. It is meant for homes and businesses, from 1,500 to 9,000 litres.
It is also available with larger heat exchangers, with a heating surface of 5.4 m², and with a metal outer casing; ask us.
From the manufacturer's photos and drawings.
The two coils enter the tank through side flanges, one above the other. The heating surface per exchanger is 3.2 m² up to 3,000 litres, 5.4 m² on the 4,000 and 5,000 litre models and 7.8 m² on the 7,000 and 9,000 litre models.

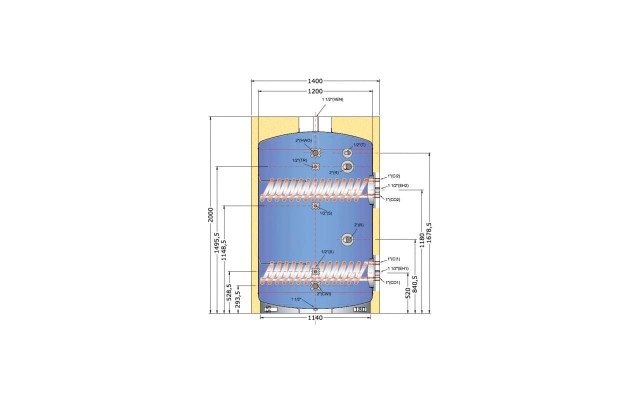

The drawing of the 2,000 litre cylinder with two removable coils: 1,400 mm diameter with insulation and 1,200 mm without, 2,000 mm high, with the position of every connection.

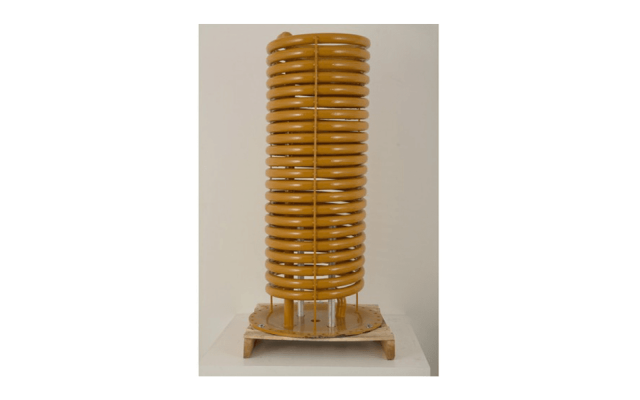

The coil is a spiral of 1″ steel pipe protected with epoxy resin, fixed to its own flange. It is removable.
All have an epoxy resin lining, removable heat exchangers, 100 mm insulation, a 10 bar working pressure and a 25 bar heat exchanger pressure. The steel gets thicker as the capacity grows.
| Compare the models | BLV215003,297.16 €This model | BLV220003,809.28 € | BLV230005,481.04 € | BLV240008,359.99 € | BLV250009,662.06 € | BLV2700012,215.98 € | BLV2900015,863.33 € |
|---|---|---|---|---|---|---|---|
| Tank capacity | 1500lt | 2000lt | 3000lt | 4000lt | 5000lt | 7000lt | 9000lt |
| Heat exchanger surface | 2 × 3.2 m² | 2 × 3.2 m² | 2 × 3.2 m² | 2 × 5.4 m² | 2 × 5.4 m² | 2 × 7.8 m² | 2 × 7.8 m² |
| Tank height | 2000 mm | 2000 mm | 2500 mm | 2650 mm | 2750 mm | 3200 mm | 3300 mm |
| Tank diameter | 1300 mm | 1400 mm | 1500 mm | 1700 mm | 1800 mm | 2000 mm | 2200 mm |
| Diameter without insulation | 1100 mm | 1200 mm | 1300 mm | 1500 mm | 1600 mm | 1800 mm | 2000 mm |
| Required height | 2385.3 mm | 2441.3 mm | 2915.4 mm | 3148.4 mm | 3286.7 mm | 3773.6 mm | 3996.1 mm |
| Net weight | 596 kg | 670 kg | 835 kg | 1107 kg | 1193 kg | 1920 kg | 2319 kg |
| Maximum working pressure | 10 bar | 10 bar | 10 bar | 10 bar | 10 bar | 10 bar | 10 bar |
| Maximum test pressure | 15 bar | 15 bar | 15 bar | 15 bar | 15 bar | 15 bar | 15 bar |
| Maximum heat exchanger pressure | 25 bar | 25 bar | 25 bar | 25 bar | 25 bar | 25 bar | 25 bar |
| Tank steel | 5mm USD37,2 steel sheet | 5mm USD37,2 steel sheet | 6mm USD37,2 steel sheet | 6mm USD37,2 steel sheet | 6mm USD37,2 steel sheet | 7mm USD37,2 steel sheet | 8mm USD37,2 steel sheet |
Manufacturer's data. The diameter includes the insulation. "From" prices include VAT.
| Solar Water Heaters | |
|---|---|
| Heat exchanger surface | 2 × 3.2 m² |
| Inner tank lining | Epoxy resin |
| Maximum heat exchanger pressure | 25 bar |
| Maximum test pressure | 15 bar |
| Maximum working pressure | 10 bar |
| Outer casing | Soft PVC |
| Tank capacity | 1500lt |
| Tank diameter | 1300 mm |
| Tank height | 2000 mm |
| Tank insulation | 100mm soft removable polyurethane |
| Tank steel | 5mm USD37,2 steel sheet |
| Heat exchangers | 2, removable |
| Required height | 2385.3 mm |
| Diameter without insulation | 1100 mm |
| Electric heating element | 4 kW, on request |
| Maximum operating temperature | 95 °C |
| Heating | |
| Net weight | 596 kg |
According to the manufacturer's instructions, the warranty requires installation as shown in the diagrams, water within drinking water limits and regular checks of the anode. The magnesium anode is a consumable and is not covered.
Warranty form (PDF, in Greek) →A partner installer does the site visit, the connection and the first start-up. Ask for a quote together with the product.
Contact us →Our engineers calculate your home's heat loss and confirm the choice. The first assessment is free.
Contact us →Our technicians answer every question, from choosing to installing.
2610 334 389 info@climaventis.grThat the water is heated in three ways: by two heat exchangers, connected to two heat sources such as a boiler and solar collectors, and by a 4 kW electric heating element, fitted on request.
The 4 kW electric heating element is optional and fitted on request. You will find it in the product options.
The comparison shows the dimensions of each size. The manufacturer also gives the required room height: the diagonal of the tank, needed to stand it upright in place. The soft polyurethane insulation is removable; the comparison also shows the diameter without it.
It depends on how much hot water you use and on the heat source. The comparison also shows the heat exchanger surface of each size. Call us and we will work it out together.
The magnesium anode is checked at least twice a year and replaced when it is used up. In suitable water it lasts about 2 years, but it may need replacing after 6 months. Cleaning is done through the flange, without chemicals.
Yes. According to the manufacturer it is also available with larger heat exchangers, with a heating surface of 5.4 m², and with a metal outer casing. Ask us for the price and delivery time.
7 years, according to the manufacturer. It requires installation following the manufacturer's instructions, water within drinking water limits and regular checks of the magnesium anode, which is a consumable and is not covered.
Collect it from our shop in Patras, or we send it by carrier. The shipping cost shows in the cart; if it does not show for your area or size, call us for the delivery cost. A plumber installs it; we can suggest a partner in your area.
The cylinders of this series are the core of the Mastersol forced circulation solar systems, with 2 m² selective collectors and a solar pump station.
