Solar pump station

Mastersol solar pump station with cover, 2–12 l/min flow meterCode: HSMK

For forced circulation solar systems, with an inverter circulator. 2–12 or 8–38 l/min flow meter.

Mastersol HSMK models

Delivery across GreeceBy courier or freight, depending on size. The cost is shown at checkout, once you enter an address.
Pick-up in Patras171 Ag. Ioanni Pratsika St · Mon–Fri 08:30–17:00, Sat 09:00–14:00
Installation by a partnerPartner installers across Greece.
2 years warranty from ClimaventisSpare parts and service directly from us.

Installer or retailer? Log in for trade prices

Description

The heart of the solar circuit.

The Mastersol solar pump station brings together the closed-circuit parts of a forced circulation solar system: an inverter circulator, an air separator to remove air from the circuit, a safety valve, a pressure gauge and thermometers, check valves and a flow meter. The connections are 3/4″ female.

It comes in two versions, with a 2–12 l/min (HSMK) or 8–38 l/min (HSMK-1) flow meter, and with an insulating cover. According to the manufacturer, the specifications may change without notice.

Inverter circulatorFor the collectors' closed circuit.

Air separatorRemoves air from the circuit.

Safety valveWith a pressure gauge and thermometers.

Flow meter2–12 or 8–38 l/min.

Highlights

A closer look.

From the manufacturer's photos.

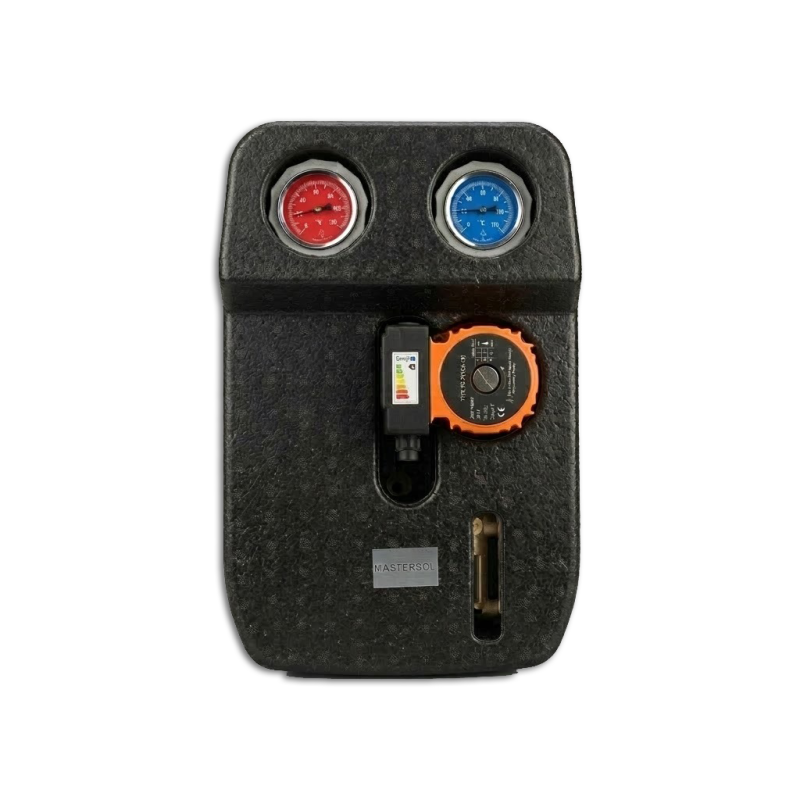

With and without the cover

The station comes with an insulating cover; without it you see the circulator, the thermometers and the valves.

All in one

Inverter circulator, air separator, safety valve, pressure gauge, thermometers, check valves and flow meter.

Compare the models

Two versions, by flow rate.

The two stations differ in the range of the flow meter.

Compare the models	HSMK220.00 €This model	HSMK-1240.00 €
Flow meter	2–12 l/min	8–38 l/min
Hydraulic connections	3/4″ female	3/4″ female

Manufacturer's data. "From" prices include VAT.

Technical specifications

All the numbers, in one table.

Solar Water Heaters
Flow meter	2–12 l/min
Heating
Warranty	2 years
Hydraulic connections	3/4″ female

Warranty & installation

We are here after you buy.

Warranty

2 yearson the solar pump station

Ask us for the warranty terms.

Warranty form (PDF, in Greek) →

Installation

By a partner in your area

A partner installer does the site visit, the connection and the first start-up. Ask for a quote together with the product.

Heating study

Sure about the size?

Our engineers calculate your home's heat loss and confirm the choice. The first assessment is free.

Questions

Ask us before you buy.

Our technicians answer every question, from choosing to installing.

2610 334 389 info@climaventis.gr

Which station do I need?

The two stations differ in the range of the flow meter: the HSMK has 2–12 l/min, the HSMK-1 8–38 l/min. Which one fits depends on your installation; ask us with its details.

What connections does it have?

3/4″ female.

Does it have a cover?

Yes, an insulating cover, as in the manufacturer's photos.

What warranty does it have?

2 years. Ask us for the warranty terms.

How is it delivered?

Collect it from our shop in Patras, or we send it by carrier. The shipping cost shows in the cart; if it does not show for your area or size, call us for the delivery cost. A plumber installs it; we can suggest a partner in your area.
