A large-capacity heat exchanger
The coil takes up much of the height of the tank. It has a large capacity and cross-section, as a heat pump needs.
Hot water cylinder for heat pumps
Hot water cylinder for heat pumps 750 litresCode: BHP1-750
With a heat exchanger of large capacity and cross-section, for a heat pump. With one or two heat exchangers, from 200 to 750 litres.
Mastersol BHP models
- Delivery across GreeceBy courier or freight, depending on size. The cost is shown at checkout, once you enter an address.
- Pick-up in Patras171 Ag. Ioanni Pratsika St · Mon–Fri 08:30–17:00, Sat 09:00–14:00
- Installation by a partnerPartner installers across Greece.
Installer or retailer? Log in for trade prices
Description
Made for heat pumps.
The Mastersol BHP is a vertical cylinder for heat pumps, with a heat exchanger of large capacity and cross-section. The BHP1 models have one heat exchanger, for the heat pump; the BHP2 models have a second one, for example for solar collectors. It also takes an electric element, so two energy sources can be connected at the same time.
It is built to the European standard EN 12897:2006. The inner surface is coated with liquid enamel applied at 850 °C (DIN 4753) and protected by a magnesium anode. It has an antibacterial design.
The insulation is 55 mm polyurethane foam, 52 kg/m³ (DIN EN ISO 845). The outer cover is PVC fabric for indoor rooms, or metal sheet for an outdoor installation. It comes in sizes from 200 to 750 litres.
Large heat exchangerLarge capacity and cross-section, for a heat pump.
One or two heat exchangersBHP2: for solar collectors as well.
Enamel fired at 850 °CTo DIN 4753, with a magnesium anode.
55 mm insulationPolyurethane, 52 kg/m³.
7-year warrantyAccording to the manufacturer.
Highlights
A closer look.
From the manufacturer's photos.

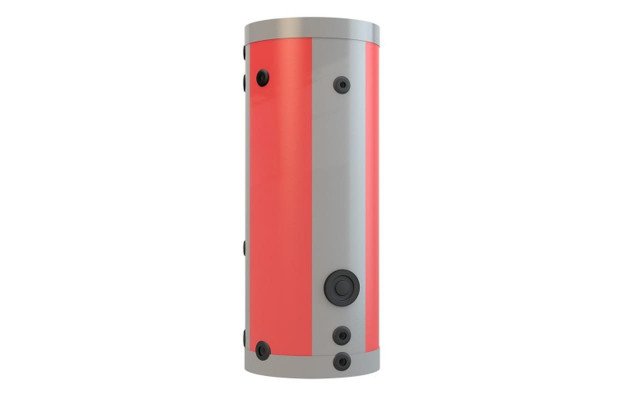

PVC or metal cover
For indoor rooms the cover is PVC fabric; for outdoor installation there is a metal sheet cover.
Compare the models
Eight models, with one or two heat exchangers.
All have enamel, a magnesium anode, 55 mm insulation and a 10 bar working pressure. The BHP1 models have one heat exchanger, the BHP2 models two.
| Compare the models | BHP1-200730.78 € | BHP1-3001,038.85 € | BHP1-500-11,400.67 € | BHP1-7502,560.75 €This model | BHP2-200854.21 € | BHP2-3001,277.57 € | BHP2-5001,693.49 € | BHP2-7503,032.62 € |
|---|---|---|---|---|---|---|---|---|
| Tank capacity | 200lt | 300lt | 500lt | 750lt | 200lt | 300lt | 500lt | 750lt |
| Heat exchangers | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Heat exchanger surface | 2.6 m² | 3.6 m² | 6.0 m² | 6.0 m² | 2.6 / 1.2 m² | 3.6 / 2.2 m² | 4.2 / 2.6 m² | – |
| Heat exchanger volume | 22.7lt | 31.5lt | – | – | 22.7lt | 31.5lt | 36.1lt | – |
| Tank height | 1545 mm | 1620 mm | 1800 mm | 1800 mm | 1545 mm | 1620 mm | 1700 mm | 1800 mm |
| Tank diameter | 600 mm | 630 mm | 800 mm | 800 mm | 600 mm | 630 mm | 750 mm | 800 mm |
| Net weight | 128 kg | 154 kg | – | – | 147 kg | 192 kg | 240 kg | – |
| Maximum working pressure | 10 bar | 10 bar | 10 bar | 10 bar | 10 bar | 10 bar | 10 bar | 10 bar |
| Maximum test pressure | 15 bar | 15 bar | 15 bar | 15 bar | – | 15 bar | 15 bar | 15 bar |
| Maximum heat exchanger pressure | 25 bar | 25 bar | 25 bar | 25 bar | 25 bar | 25 bar | 25 bar | 25 bar |
| Tank insulation | 55mm polyurethane, 52 kg/m³ | 55mm polyurethane, 52 kg/m³ | 55mm polyurethane, 52 kg/m³ | 55mm polyurethane, 52 kg/m³ | – | 55mm polyurethane, 52 kg/m³ | 55mm polyurethane, 52 kg/m³ | 55mm polyurethane, 52 kg/m³ |
Manufacturer's data. The diameter includes the insulation. "From" prices include VAT.
Technical specifications
All the numbers, in one table.
| Heat exchanger surface | 6.0 m² |
|---|---|
| Inner tank lining | Direct Glass liquid enamel (Bayer), fired at 850 °C |
| Maximum heat exchanger pressure | 25 bar |
| Maximum test pressure | 15 bar |
| Maximum working pressure | 10 bar |
| Outer casing | Soft PVC, in a colour of your choice |
| Tank capacity | 750lt |
| Tank diameter | 800 mm |
| Tank height | 1800 mm |
| Tank insulation | 55mm polyurethane, 52 kg/m³ |
| Tank steel | 2.5mm USD37,2 steel sheet |
| Heat exchangers | 1 |
| Maximum operating temperature | 95 °C |
Warranty & installation
We are here after you buy.
7 yearsmanufacturer's warranty
According to the manufacturer's instructions, the warranty requires installation as shown in the diagrams, water within drinking water limits and regular checks of the anode. The magnesium anode is a consumable and is not covered.
Warranty form (PDF, in Greek) →By a partner in your area
A partner installer does the site visit, the connection and the first start-up. Ask for a quote together with the product.
Contact us →Sure about the size?
Our engineers calculate your home's heat loss and confirm the choice. The first assessment is free.
Contact us →Before installing
- RoomIn a closed room protected from frost, with a floor drain for any leaks, as the manufacturer's instructions require.
- DimensionsDimensions: height 1800 mm, diameter with insulation 800 mm.
- Pressure and safetyMaximum working pressure 10 bar, maximum heat exchanger pressure 25 bar. A safety valve is mandatory, according to the manufacturer's instructions.
- WaterThe mains water must be within drinking water limits; otherwise, according to the manufacturer, the cylinder is no longer under warranty.
- ServiceThe magnesium anode is checked at least twice a year and replaced when it is used up. In suitable water it lasts about 2 years, but it may need replacing after 6 months. Cleaning is done through the flange, without chemicals.
Questions
Ask us before you buy.
Our technicians answer every question, from choosing to installing.
2610 334 389 info@climaventis.grWill it fit in my room?
The comparison shows the dimensions of each size.
Which size do I need?
It depends on how much hot water you use and on the heat source. The comparison also shows the heat exchanger surface of each size. Call us and we will work it out together.
What servicing does it need?
The magnesium anode is checked at least twice a year and replaced when it is used up. In suitable water it lasts about 2 years, but it may need replacing after 6 months. Cleaning is done through the flange, without chemicals.
What is the difference between BHP1 and BHP2?
The BHP1 models have one heat exchanger, for the heat pump. The BHP2 models have two: the second connects for example to solar collectors. Both take an electric element.
Can it go outdoors?
According to the manufacturer, there is a metal sheet cover for outdoor installation; the PVC fabric cover is for indoor rooms. Ask us before you order.
What warranty does it have?
7 years, according to the manufacturer. It requires installation following the manufacturer's instructions, water within drinking water limits and regular checks of the magnesium anode, which is a consumable and is not covered.
How is it delivered?
Collect it from our shop in Patras, or we send it by carrier. The shipping cost shows in the cart; if it does not show for your area or size, call us for the delivery cost. A plumber installs it; we can suggest a partner in your area.
Complete the installation
For the BHP2: solar.
The second heat exchanger of the BHP2 models connects to solar collectors through a solar pump station.
