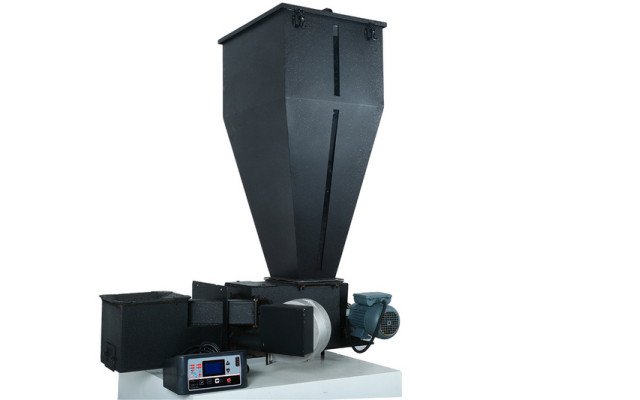

Silo and auger
The silo holds 200 kg of fuel and the auger brings it to the burner. According to the product data, autonomy reaches up to 55 hours; in practice it depends on the fuel and on how much heat the house needs.
1 / 7

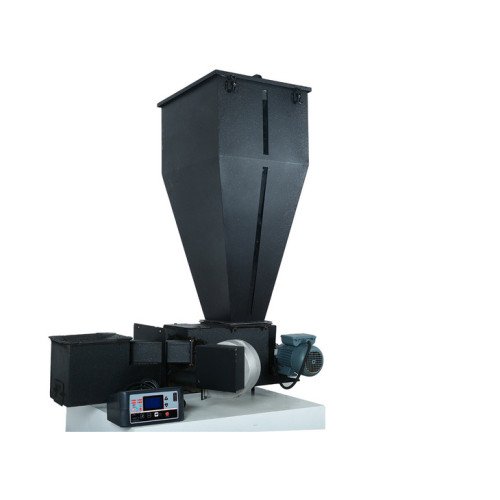

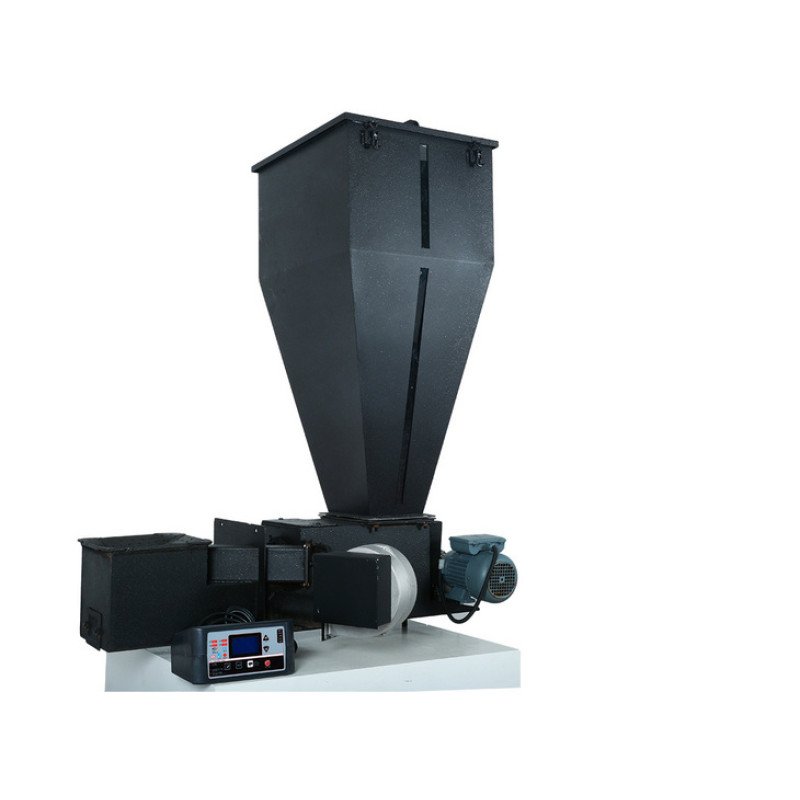

Olive pit and biomass burner
Werstahl HSB40/70Code: HSB40/70
For boilers of 40,000 to 70,000 kcal. With a silo, a fan, a geared motor and an auger.
- Maximum output
- 70kW
- Efficiency
- 85%
- Autonomy
- 55hours
- Fuel silo capacity
- 200kg
Fuels
PelletsOlive pitsCoalWheatMaizeKernels+1
- Delivery across GreeceBy courier or freight, depending on size. The cost is shown at checkout, once you enter an address.
- Pick-up in Patras171 Ag. Ioanni Pratsika St · Mon–Fri 08:30–17:00, Sat 09:00–14:00
- Installation by a partnerPartner installers across Greece.
Installer or retailer? Log in for trade prices
Description
Your wood boiler, on biomass, automatically.
The Werstahl HSB40/70 is an olive pit and biomass burner, to add to boilers of 40,000 to 70,000 kcal. It fits the Werstahl Hades HD40, HD50 and HD70 wood boilers and most other wood boilers.
It burns pellets, olive pits, coal, wheat, maize, kernels, agro pellets and other biomass. A geared motor drives the auger that brings the fuel from the silo to the combustion area; an electronic control panel controls the feed.
It includes the silo, the fan, the geared motor and the auger. The control panel is required for the burner to work: it goes into the order with the burner, as an option of the product.
Many fuelsPellets, olive pits, kernels, cereals.
200 kg siloUp to 55 hours of autonomy, as an indication.
Up to 70 kWFor boilers of 40,000–70,000 kcal.
Automatic feedAn auger with a geared motor.
Electronic panelIt controls the feed; required for operation.
Highlights
What it includes.
The burner comes with its silo, auger, fan and geared motor.

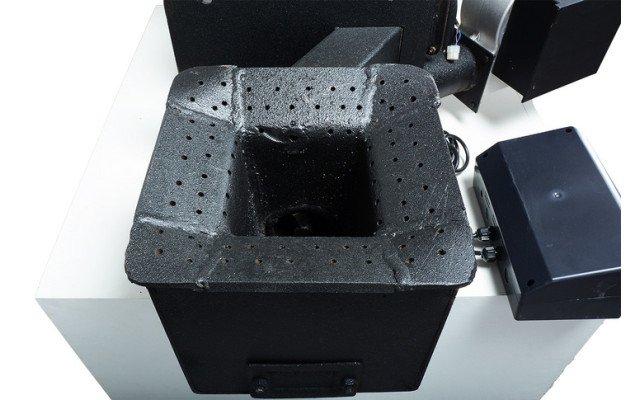

Burner pot
The geared motor pushes the fuel into the burner pot. The electronic control panel controls the feed rate.

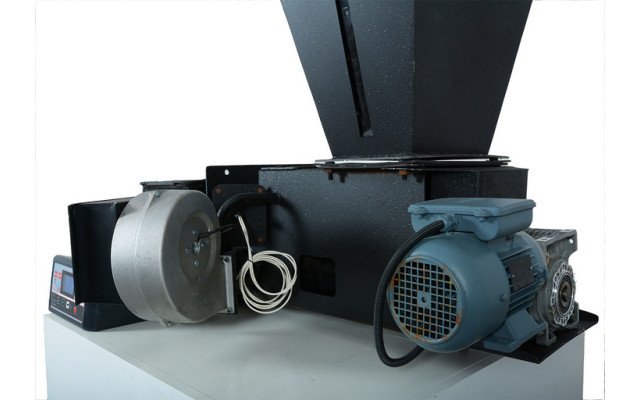

Fan and geared motor
Both come with the burner: the fan for the combustion air and the motor with its reducer that drives the auger.

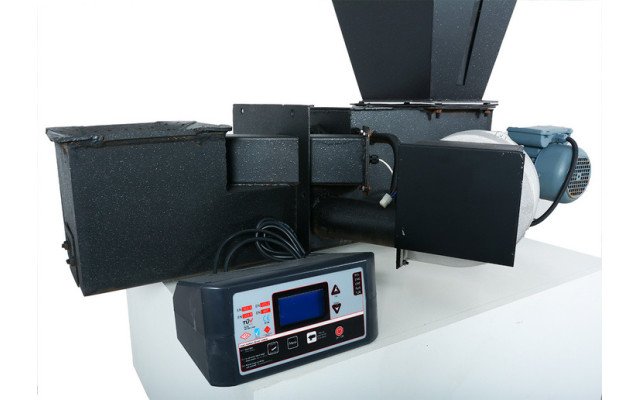

Electronic control panel
It controls the fuel feed and is required for the burner to work. It goes into the order with the burner, as an option of the product.
Fuels
Many fuels, fed automatically from the silo.
The auger feeds the burner from the 200 kg silo.
Automatically from the siloPellets
Automatically from the siloOlive pits
Automatically from the siloKernels
Automatically from the siloCoal
Automatically from the siloWheat, maize
Automatically from the siloAgro pelletsPellets from farm residues.
Technical specifications
All the numbers, in one table.
| Autonomy | up to 55 hours |
|---|---|
| Consumption | 3.5 - 11.4kg/h |
| Efficiency | 85% |
| Fuel | Pellets, olive pits, coal, wheat, maize, kernels, agro pellets |
| Fuel silo capacity | 200kg |
| Maximum output | 70kw |
Warranty & installation
We are here after you buy.
By a partner in your area
A partner installer does the site visit, the connection and the first start-up. Ask for a quote together with the product.
Contact us →Sure about the size?
Our engineers calculate your home's heat loss and confirm the choice. The first assessment is free.
Contact us →Before installing
- BoilerIt fits the Werstahl Hades HD40, HD50 and HD70. It is for boilers of 40,000 to 70,000 kcal and fits most wood boilers; for another boiler, ask us before you order whether it fits.
- Control panelThe feed is controlled by the electronic control panel. The burner does not work without it; it goes into the order with the burner, as an option of the product.
- Power supplyThe fan, the geared motor and the panel need power.
- FuelSilo 200kg · consumption 3.5 - 11.4kg/h · autonomy up to 55 hours, as an indication.
Questions
Ask us before you buy.
Our technicians answer every question, from choosing to installing.
2610 334 389 info@climaventis.grWhich boilers does it fit?
The Werstahl Hades HD40, HD50 and HD70 wood boilers, which are ready for a biomass burner. In general it is for boilers of 40,000 to 70,000 kcal and fits most wood boilers. For another boiler, ask us before you order whether it fits.
Which fuels does it burn?
Pellets, olive pits, coal, wheat, maize, kernels, agro pellets and other biomass.
What does the price include?
The burner with its silo, fan, geared motor and auger. The electronic control panel, which controls the feed, is required for operation: it goes into the order with the burner, as an option of the product.
What output does it have?
A maximum output of 70 kW and 85% efficiency, according to the product data. It is for boilers of 40,000 to 70,000 kcal.
How long does a full silo last?
The silo holds 200 kg. According to the product data, autonomy reaches up to 55 hours, with a consumption of 3.5 to 11.4 kg per hour. In practice it depends on the fuel and on how much heat the house needs.
How are delivery and installation done?
Collect it from our shop in Patras, or we send it by carrier. The shipping cost shows in the cart; if it does not show for your area or size, call us for the delivery cost. An installer fits the burner; we can suggest a partner in your area.
Complete the installation
Werstahl Hades wood boilers.
The HSB40/70 fits the Hades HD40, HD50 and HD70, of 40,000, 50,000 and 70,000 kcal, which are ready for a biomass burner.
