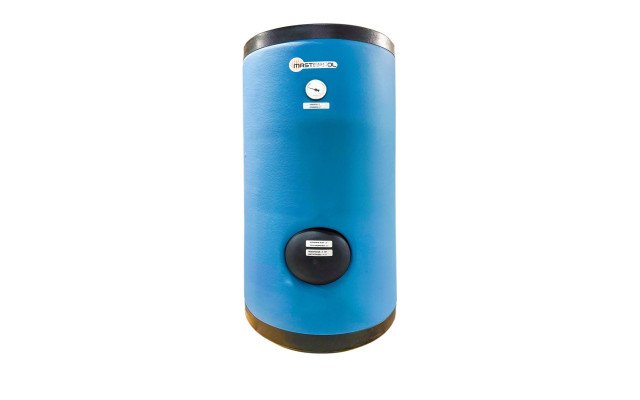

Thermometer and cleaning flange
At the front there is a 0–120 °C thermometer and a cleaning and inspection flange. The flange is used for the regular cleaning of scale and sediment from the tank.
1 / 6
Hot water cylinder for heat pumps
Mastersol hot water cylinder for heat pumps 300 litres, triple energyCode: BL2HP-300
Large-surface heat exchangers for a heat pump, Direct Glass enamel. 200 to 500 litres.
Mastersol BLHP models
- Delivery across GreeceBy courier or freight, depending on size. The cost is shown at checkout, once you enter an address.
- Pick-up in Patras171 Ag. Ioanni Pratsika St · Mon–Fri 08:30–17:00, Sat 09:00–14:00
- Installation by a partnerPartner installers across Greece.
- 7 years warranty from ClimaventisSpare parts and service directly from us.
Installer or retailer? Log in for trade prices
Description
For hot water from a heat pump.
The Mastersol BLHP is a vertical hot water cylinder with large-surface heat exchangers. The BLHP-200 has one large-surface heat exchanger (double energy) and the BL2HP models have two (triple energy). They also take a 4 kW electric heating element, on request.
Inside, it is protected from corrosion by Direct Glass liquid enamel, fired at 850 °C, 400 microns thick, made of inorganic silicates without chemical additives (DIN 4753 Teil 3 & 6). The glass bonds fully to the steel and follows its expansion and contraction. It is built to DIN 4753 and EN 12897.
It stands upright and has ports for recirculation and for an immersion thermometer, a cleaning flange and a magnesium anode. The insulation is 50 mm polyurethane with a leatherette cover. It has a 0–120 °C thermometer and steel support feet. It is meant for homes and businesses, from 200 to 500 litres.
Large-surface heat exchangersOne on the BLHP-200, two on the BL2HP models.
Direct Glass enamelFired at 850 °C, 400 microns thick, to DIN 4753.
50 mm insulationPolyurethane with a leatherette cover.
Thermometer0–120 °C thermometer and a sensor pocket.
Cleaning flangeFor inspecting and cleaning the tank.
Electric heating elementOptional, on request.
Highlights
A closer look.
The same construction as the BLS line, with larger heat exchangers.
Insulation with a leatherette cover
The 50 mm polyurethane insulation is covered by a leatherette jacket that closes with a zip.
Labelled connections
Each port has a label with its use and size, e.g. "Hot water outlet 3/4″". The plumber sees at once what connects where.
Compare the models
Four models, with one or two heat exchangers.
All have Direct Glass enamel, 50 mm insulation with a leatherette cover, a thermometer, a magnesium anode and an 8 bar working pressure.
| Compare the models | BLHP-200734.08 € | BL2HP-200747.72 € | BL2HP-3001,046.98 €This model | BL2HP-5001,500.23 € |
|---|---|---|---|---|
| Tank capacity | 200lt | 200lt | 300lt | 500lt |
| Heat exchangers | 1 | 2 | 2 | 2 |
| Actual volume | 170lt | 171lt | 262lt | – |
| Heat exchanger surface | 2.01 m² | top 0.63 m² · bottom 1.27 m² | top 1.27 m² · bottom 1.69 m² | 4.02 m² |
| Tank height | 1240 mm | 1240 mm | 1240 mm | 2080 mm |
| Tank diameter | 600 mm | 600 mm | 700 mm | 700 mm |
| Maximum working pressure | 8 bar | 8 bar | 8 bar | – |
| Maximum test pressure | 10 bar | 10 bar | 10 bar | – |
| Tank insulation | 50mm rigid polyurethane, 44 kg/m³, leatherette cover | 50mm rigid polyurethane, 44 kg/m³, leatherette cover | 50mm rigid polyurethane, 44 kg/m³, leatherette cover | 50mm polyurethane, leatherette cover |
| Hydraulic connections | Domestic water 3/4″ · coil 1″ · recirculation 3/4″ | Domestic water 3/4″ · coil 1″ · recirculation 3/4″ | Domestic water 1″ · coil 1″ · recirculation 1″ | Domestic water 1″ · coil 1″ · recirculation 1″ |
Manufacturer's data from the product labels and the line's technical table; according to the manufacturer they may vary by ±5%. "From" prices include VAT.
Technical specifications
All the numbers, in one table.
| Solar Water Heaters | |
|---|---|
| Heat exchanger surface | top 1.27 m² · bottom 1.69 m² |
| Inner tank lining | Direct Glass liquid enamel (Bayer), fired at 850 °C |
| Maximum test pressure | 10 bar |
| Maximum working pressure | 8 bar |
| Tank capacity | 300lt |
| Tank diameter | 700 mm |
| Tank height | 1240 mm |
| Tank insulation | 50mm rigid polyurethane, 44 kg/m³, leatherette cover |
| Heat exchangers | 2 |
| Electric heating element | Optional |
| Actual volume | 262lt |
| Heating | |
| Warranty | 7 years |
| Hydraulic connections | Domestic water 1″ · coil 1″ · recirculation 1″ |
Warranty & installation
We are here after you buy.
7 yearsmanufacturer's warranty
According to the manufacturer's instructions, the warranty requires installation as shown in the diagrams, water within drinking water limits and regular checks of the anode. The magnesium anode is a consumable and is not covered.
Warranty form (PDF, in Greek) →By a partner in your area
A partner installer does the site visit, the connection and the first start-up. Ask for a quote together with the product.
Contact us →Sure about the size?
Our engineers calculate your home's heat loss and confirm the choice. The first assessment is free.
Contact us →Before installing
- RoomIn a closed room protected from frost, with a floor drain for any leaks, as the manufacturer's instructions require.
- DimensionsDimensions: height 1240 mm, diameter with insulation 700 mm.
- Pressure and safetyAn 8 atm safety valve and a 6 atm pressure reducer go on the cold water inlet, to protect against high mains pressure. It also needs an earth connection and an expansion vessel in the hot water circuit. Otherwise, according to the manufacturer, the cylinder is no longer under warranty. The maximum working pressure of each size is in the comparison.
- WaterThe mains water must be within drinking water limits; otherwise, according to the manufacturer, the cylinder is no longer under warranty.
- ServiceThe magnesium anode is checked at least twice a year and replaced when it is used up. In suitable water it lasts about 2 years, but it may need replacing after 6 months. Cleaning is done through the flange, without chemicals.
Questions
Ask us before you buy.
Our technicians answer every question, from choosing to installing.
2610 334 389 info@climaventis.grIs the electric heating element included?
The electric heating element is optional and fitted on request. You will find it in the product options.
Will it fit in my room?
The comparison shows the dimensions of each size.
Which size do I need?
It depends on how much hot water you use and on the heat source. The comparison also shows the heat exchanger surface of each size. Call us and we will work it out together.
What servicing does it need?
The magnesium anode is checked at least twice a year and replaced when it is used up. In suitable water it lasts about 2 years, but it may need replacing after 6 months. Cleaning is done through the flange, without chemicals.
Why a cylinder made for heat pumps?
Because it has large-surface heat exchangers: from 2.01 m² on the BLHP-200 to 4.02 m² in total on the BL2HP-500, according to the manufacturer's data. Which model suits your heat pump, we can work out together.
What warranty does it have?
7 years. It requires installation following the manufacturer's instructions, water within drinking water limits and regular checks of the magnesium anode, which is a consumable and is not covered.
How is it delivered?
Collect it from our shop in Patras, or we send it by carrier. The shipping cost shows in the cart; if it does not show for your area or size, call us for the delivery cost. A plumber installs it; we can suggest a partner in your area.
