Fondital Antea KC 24 - Condensing wall hang gas boiler 20kw 1 / 4
Fondital All Fondital →

Fondital Antea KC 24 - Condensing wall hang gas boiler 20kwCode: KC24

Maximum output
20kW
Efficiency
109,6%
1,124.00 €incl. VAT
In stock · delivery or pick-up in Patras
Request a quote with installation
  • Delivery across GreeceBy freight because of its weight (26kg). The cost is shown at checkout, once you enter an address.
  • Pick-up in Patras171 Ag. Ioanni Pratsika St · Mon–Fri 08:30–17:00, Sat 09:00–14:00
  • Installation by a partnerPartner installers across Greece.

Installer or retailer? Log in for trade prices

Description

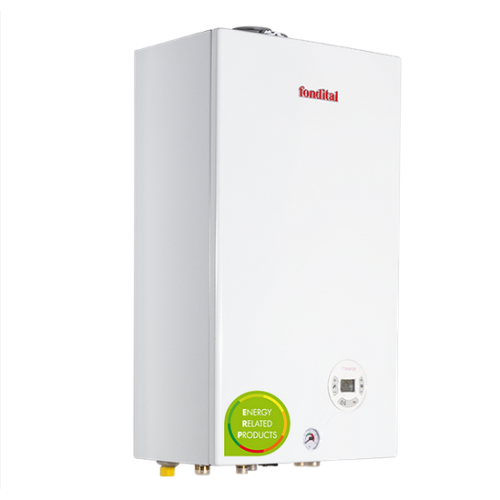

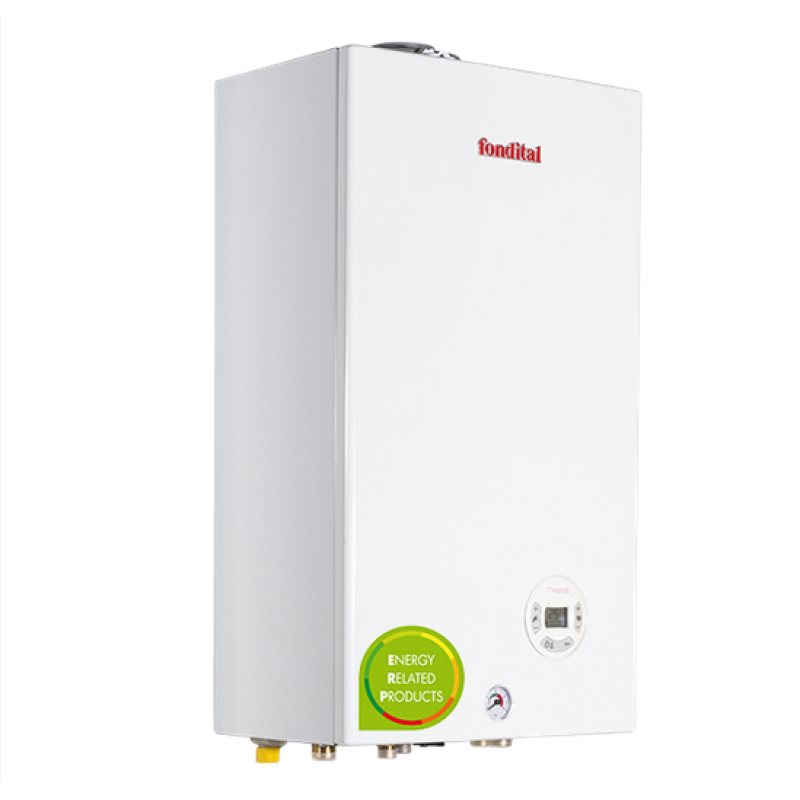

Fondital Antea KC 24 - Condensing wall hang gas boiler 20kw

WALL-HUNG CONDENSING BOILER WITH PRE-MIXING FEATURE FOR THE INSTANT PRODUCTION OF DOMESTIC HOT WATER

PLUS

  • Ultra-compact
  • Scambiatore di calore in alluminio primario
  • 7 l heating expansion vessel
  • Modulation ratio 1:5
  • Ideale per la sostituzione in impianti con radiatori

FEATURES

  • Built-in hydraulic unit including 3-way valve, automatic bypass, safety valve, pressure transducer, drain tap and expansion vessel connection
  • Safety electronic board controlling burner electronic ignition, flame control via ionization
  • LCD interface to view CH flow water temperature, DHW temperature, failure codes, CH setting, DHW setting and operating status setting
  • Fully pre-mixed burner
  • 3-speed pump with integrated air purging device
  • Boiler hydraulic replacement kit available as optional equipment

technical specifications minorca

Technical specifications

All the numbers, in one table.

Heating
Dimensions (W x H x D) cm40 x 70 x 25cm
Efficiency109,6%
Maximum output20kw
Net weight26kg
Nominal output20,0kw
Sanitary hot water production11 Lt/min
Ranges
Approximate heating space in m²51-100m²
Nominal Power (kw)20-25kw
