Werstahl Hades HD100 · Wood boiler 116 kW

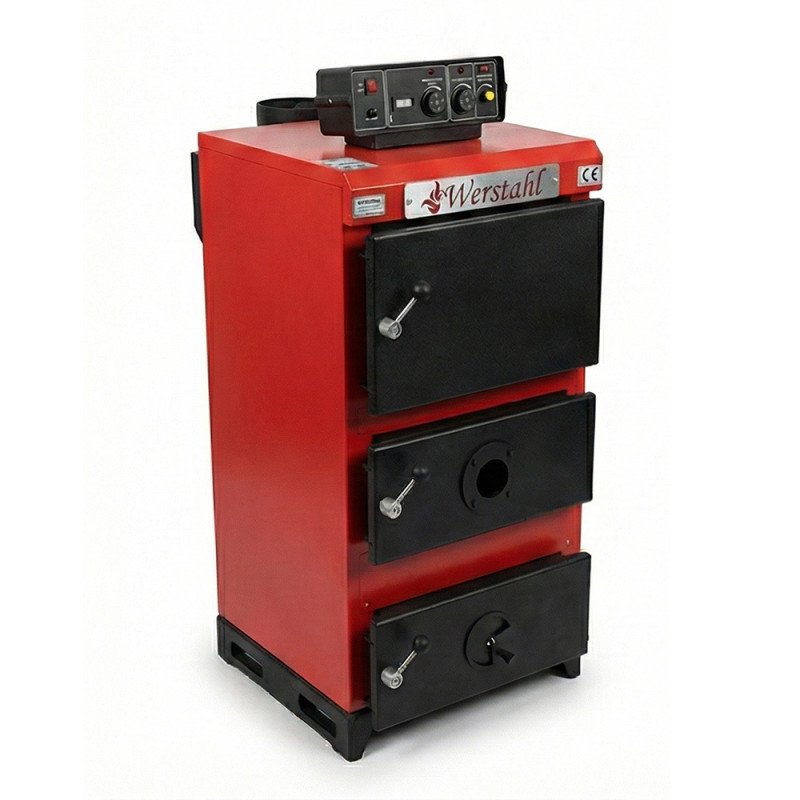

Name: Werstahl Hades HD100 (100,000 kcal - 116 kW) Wood boiler, convertible to pellets, olive pits and biomass
Brand: Werstahl
SKU: HD100
Price: 2410.00 EUR
Availability: InStock

Description

A wood boiler, ready for a burner.

The Werstahl Hades is a wood boiler made of heavy duty steel, 4 mm thick, and 5 mm on the HD100. The flue gases make three passes through horizontal fire tubes, and efficiency is 83%. The boiler has a semi-automatic cleaning system.

It is not limited to wood. It has a port for an oil or gas burner and is ready for a biomass burner, for pellets, olive pits and other biomass.

The boilers go through thorough checks, are CE certified and are produced to ISO 9001 standards. They come with a written 7-year warranty. You add the analogue control panel and the fan, if you want them, when you order.

4 mm steelHeavy duty; 5 mm on the HD100.

Three passesHorizontal fire tubes, semi-automatic cleaning.

83% efficiencyAcross the whole series.

Burner portFor oil or gas; ready for biomass.

Analogue panelSimple and durable, optional.

7-year warrantyWritten, valid throughout Greece.

Highlights

What makes the difference.

What the Werstahl Hades comes with.

            Heavy duty steelThe body is made of high quality steel, 4 mm thick, and 5 mm on the HD100. Every boiler goes through thorough checks, is CE certified and is produced to ISO 9001 standards.

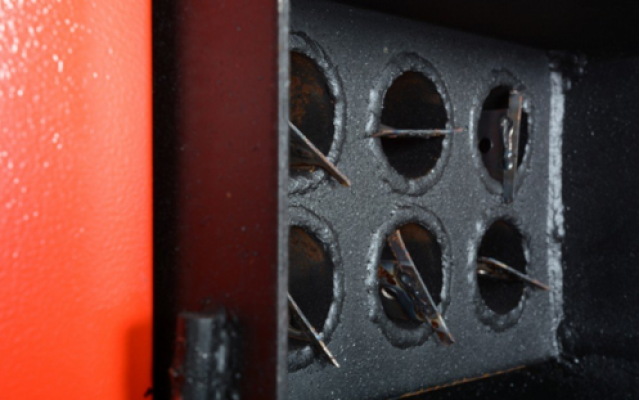

            Fire-tube heat exchangerThe flue gases make three passes through fire tubes. The heat exchange surface grows, the flue gas temperature stays low and fuel consumption drops. Its design also makes cleaning easier.

            Analogue control panelSimple and reliable: it shows the basics of combustion at once, without complex electronics or menus. It has a switch, a water thermostat and a circulator thermostat. You add it when you order.

            Burner portWith an oil or gas burner the boiler keeps heating when you run out of wood, or whenever you prefer another fuel. It is also ready for a biomass burner, for pellets and olive pits.

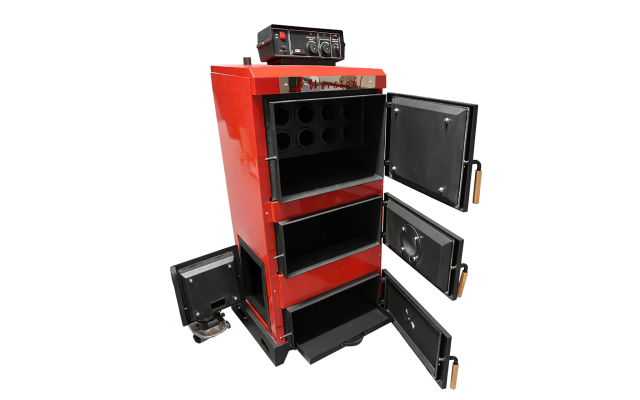

            Three front doorsFire tubes at the top, combustion chamber in the middle, ash at the bottom: each has its own door. The fan goes on the side, if you choose it. The semi-automatic cleaning system makes servicing easier.

Fuels

Wood on the grate, the rest with a burner.

Wood is loaded by hand. For oil, gas or biomass, the matching burner is fitted to the boiler.

On the wood grateWood

With a burnerHeating oilWith an oil burner.

With a burnerGasWith a gas burner.

With a burnerPellets, olive pits, biomassWith a biomass burner.

The oil, gas or biomass burner is bought separately.

Compare the models

Four sizes, one design.

All models have 83% efficiency, a 200 mm flue and the same design. Choose the size by the space you heat and, ideally, a heat loss study.

Compare the models	HD401,320.00 €	HD501,450.00 €	HD701,670.00 €	HD1002,410.00 €This model
Maximum output	46kw	58kw	81kw	116kw
Water output	40,000kcal	50,000kcal	70,000kcal	100,000kcal
Heated space	190 m²	250 m²	350 m²	500 m²
Consumption	2.5 - 10kg/h	3 - 12kg/h	4 - 17kg/h	7 - 25kg/h
Water capacity	90lt	110lt	140lt	240lt
Dimensions (W x H x D) cm	64 x 137 x 80cm	64 x 137 x 91cm	74 x 137 x 98cm	74 x 150 x 116cm
Net weight	320kg	380kg	460kg	580kg
Flue diameter	200mm	200mm	200mm	200mm
Steel thickness	4mm	4mm	4mm	5mm
Efficiency	83%	83%	83%	83%

Manufacturer's data. Heated space is indicative. Prices include VAT, without the fan and the control panel.

Technical specifications

All the numbers, in one table.

Heating
Consumption	7 - 25kg/h
Dimensions (W x H x D) cm	74 x 150 x 116cm
Efficiency	83%
Flue diameter	200mm
Fuel	Wood, oil, gas, biomass
Heated space	500 m²
Maximum output	116kw
Net weight	580kg
Steel thickness	5mm
Warranty	7 years
Water capacity	240lt
Water output	100,000kcal
Ranges
Approximate heating space in m²	401-500m²
Nominal Power (kw)	101-120kw

Warranty & installation

We are here after you buy.

Warranty

7 yearson the Werstahl boiler

2 yearson the electrical and electronic parts

A written warranty, valid throughout Greece. It covers parts and transport, not labour. A yearly service by a technician is required.

Warranty terms → Warranty form (PDF, in Greek) →

Installation

By a partner in your area

A partner installer does the site visit, the connection and the first start-up. Ask for a quote together with the product.

Contact us →

Heating study

Sure about the size?

Our engineers calculate your home's heat loss and confirm the choice. The first assessment is free.

Contact us →

Before installing

FlueFlue connection 200mm. The installer checks it before connecting.
Power supplyThe control panel and the fan, if you choose them, need power. A voltage stabiliser is recommended: damage from voltage drops is not covered by the warranty of the electronics.
PlumbingBoiler water 240lt. For the size of the connections, ask us before installing.
SpaceDimensions 74 x 150 x 116cm (W × H × D), net weight 580kg. Leave room for the doors to open, at the front and on the side, and for cleaning.
SizeThe heated space is indicative. Choosing the right size needs a heat loss study.
ServiceA yearly service by a technician, replacing the anode rod and checking the safety systems. It is also a condition of the warranty.

Questions

Ask us before you buy.

Our technicians answer every question, from choosing to installing.

2610 334 389 info@climaventis.gr

Which model suits my home?

The model comparison shows the heated space of each size, indicatively from 190 m² for the HD40 to 500 m² for the HD100. The right choice depends on the insulation and the climate, so a heat loss study is needed. Call us and we will help.

Can I fit an oil or gas burner?

Yes. The boiler has a port for an oil or gas burner, so it keeps heating when you have no wood. The burner is bought separately.

Can it burn pellets or olive pits?

Yes, with a biomass burner: the boiler is ready for one. The Werstahl HSB40/70 olive pit and biomass burner fits the HD40, HD50 and HD70. For the HD100, ask us.

What does the price include?

The boiler. You choose the analogue control panel and the fan when you order, if you want them. An oil, gas or biomass burner is bought separately.

How is it cleaned?

The boiler has a semi-automatic cleaning system, and the design of the heat exchanger makes cleaning easier. The fire tubes, the combustion chamber and the ash each have their own door.

What servicing does it need?

A yearly service by a technician, replacing the anode rod and checking the safety systems. It is also a condition of the warranty.

What warranty does it have?

A written warranty of 7 years on the boiler and 2 years on the electrical and electronic parts, throughout Greece, provided it is serviced every year.

How are delivery and installation done?

Collect it from our shop in Patras, or we send it by carrier. The shipping cost shows in the cart; if it does not show for your area or size, call us for the delivery cost. A heating installer fits it; we can suggest a partner in your area.

Complete the installation

A biomass burner and a hot water cylinder.

The Werstahl HSB40/70 burner fits the HD40, HD50 and HD70. With a Mastersol hot water cylinder, your hot water is heated by the boiler while the heating runs.
