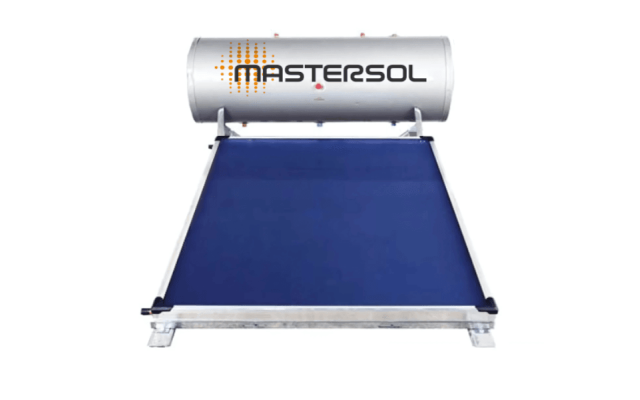

Low frame
The collector sits low and the cylinder reaches 130 cm above the roof surface. The system hides behind low parapets and suits places where height, wind or the look of the building call for a discreet installation.
1 / 9

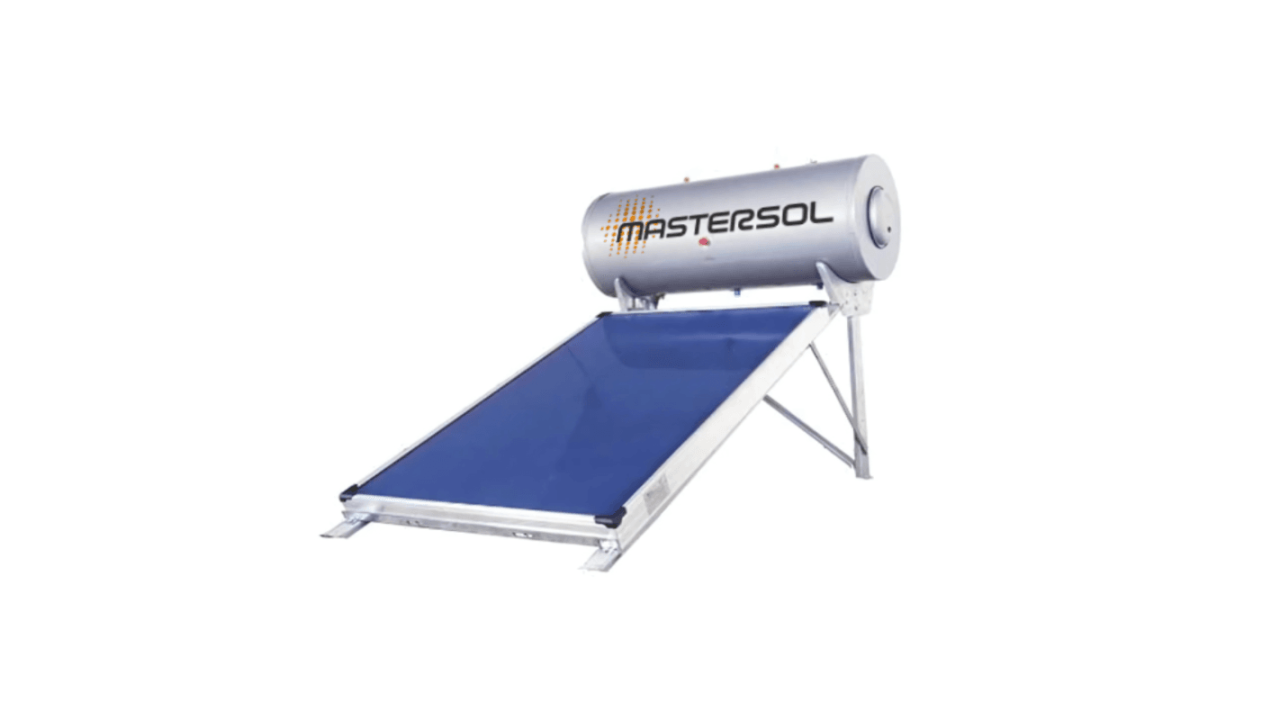

Low-profile dual-energy solar water heater
Mastersol LP Low-Profile Solar Water Heater 120 lt, Selective Collector 1.5 m², Dual EnergyCode: LP120-15
A low frame with the same collector area: the cylinder sits 130 cm above the roof surface. For roofs with low parapets and a discreet installation.
Mastersol LP100–160 models
- Delivery across GreeceBy courier or freight, depending on size. The cost is shown at checkout, once you enter an address.
- Pick-up in Patras171 Ag. Ioanni Pratsika St · Mon–Fri 08:30–17:00, Sat 09:00–14:00
- Installation by a partnerPartner installers across Greece.
- 5 years cylinder (10 with the extension kit), 15 years collectors warranty from ClimaventisSpare parts and service directly from us.
Installer or retailer? Log in for trade prices
Description
Same output, lower height.
The Mastersol LP (Low Profile) is a closed-circuit solar water heater on a low frame. The cylinder sits 130 cm above the roof surface, so the system suits roofs with low parapets, is less visible from the street and takes less wind load.
The collector and the jacket are filled with antifreeze, which carries the sun's heat to your hot water, so the system withstands frost down to −47°C. The tank is made of 2.5mm European steel, with Bayer Double Duro Glass enamel, a magnesium anode and 6cm of polyurethane insulation.
The collector has a full-plate selective aluminium-titanium absorber, copper risers and 3.2mm tempered safety glass that stands up to hail and heavy rain.
It is dual energy: the sun heats the water and, when needed, the 3.5kw electric element.
This range covers the 100 to 160-litre models, with 1.5 to 3 m² of collectors. There are also 200-litre LP models and triple-energy versions.
Mastersol solar water heaters carry an A+ energy label and are CE and Solar Keymark certified.
Cylinder at 130cmAbove the roof, for low parapets.
Less wind loadAnd less visible from the street.
Selective collectorFull-plate aluminium-titanium absorber, copper risers.
Closed circuitWith antifreeze, down to −47°C.
Sun and electricityA 3.5kw element as a second source.
Easy accessFor servicing, and better compatibility with PV panels.
Highlights
What makes the difference.
What every LP comes with, from the low frame to the tank.
Double Duro Glass tank
2.5mm European steel with Bayer Double Duro Glass enamel fired at 830°C and 6cm of polyurethane insulation. A magnesium anode against corrosion and a 3.5kw electric element.

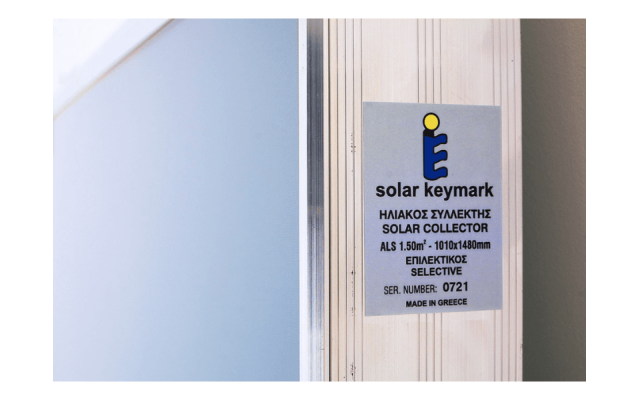

Solar Keymark certified
The collector carries a Solar Keymark plate with a serial number. The selective aluminium-titanium absorber covers the whole surface, on Ø22 & Ø8 copper risers, and the 3.2mm tempered glass stands up to hail and heavy rain.

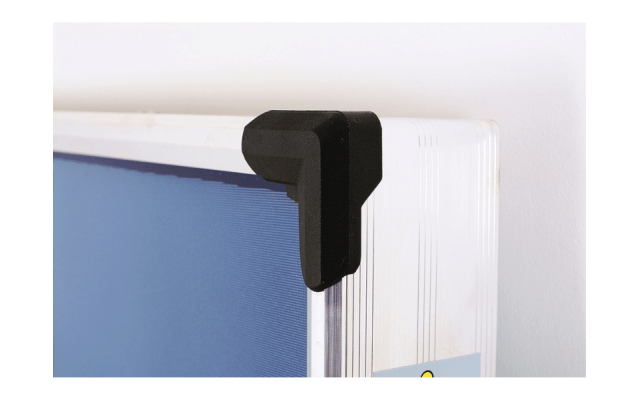

One-piece aluminium frame
A one-piece aluminium frame with a 1.25mm profile, a 0.5mm galvanised steel back and double 4cm mineral wool insulation. 100% neutral silicone.

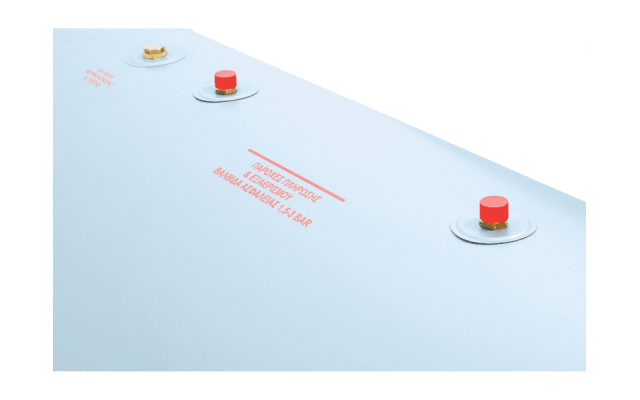

Closed circuit with antifreeze
The collector and the jacket are filled with antifreeze, so the system withstands frost down to −47°C. On top of the tank are the fill and vent points of the circuit and the seat of its safety valve (1.5-3 bar).
Made in Greece
Mastersol solar water heaters are made in Greece. The heavy-duty brass connections are marked on the tank: hot water outlet and the connection to the collectors.
Compare the models
Seven sizes, one build.
All models share the same low frame, the same tank and a 3.5kw element. The litres and the collector area change: choose by the number of people and where you live.
| Compare the models | LP100-15657.48 € | LP120-15693.36 €This model | LP120-2735.03 € | LP160-2755.86 € | LP160-25812.58 € | LP160-27842.67 € | LP160-3905.17 € |
|---|---|---|---|---|---|---|---|
| Tank · collectors | 100 lt · 1.5 m² | 120 lt · 1.5 m² | 120 lt · 2.0 m² | 160 lt · 2.0 m² | 160 lt · 2.5 m² | 160 lt · 2.75 m² | 160 lt · 3.0 m² |
| Collector dimensions | 1 collector, 1.5 × 1.0 m | 1 collector, 1.5 × 1.0 m | 1 collector, 2.0 × 1.0 m | 1 collector, 2.0 × 1.0 m | 1 collector, 2.0 × 1.25 m | 1 collector, 2.0 × 1.36 m | 2 collectors, 1.5 × 1.0 m |
Manufacturer's data (mastersol.gr). Collector dimensions: height × width. "From" prices include VAT.
Technical specifications
All the numbers, in one table.
| Litres | |
|---|---|
| 120 lt (2-3 users) | |
| Solar Water Heaters | |
| Collector area | 1.5 m² |
| Collector back | 0.5mm galvanised steel sheet |
| Collector dimensions | 1 collector, 1.5 × 1.0 m |
| Collector efficiency | 95% ±2% |
| Collector frame | Aluminium, one-piece |
| Collector insulation | Double mineral wool 4cm |
| Collector type | Selective aluminium-titanium, full plate |
| Energy Class | A+ |
| Inner tank lining | Double Duro Glass enamel (Bayer) to DIN 4753, fired at 830°C |
| Maximum heat exchanger pressure | 3.2bar |
| Maximum test pressure | 15bar |
| Maximum working pressure | 10bar |
| Riser grid | Copper Ø22 & Ø8 |
| Tank capacity | 120lt |
| Tank connections | Heavy-duty brass |
| Tank insulation | Polyurethane 6cm, 42kg/m³ |
| Tank steel | 2.5mm European steel 1204 V.E. |
| Tank type | Closed circuit |
| Tank · collectors | 120 lt · 1.5 m² |
| Energy sources | Sun and electricity |
| Electric heating element | 3.5kw (Ø140 flange, 8 holes) |
| Maximum operating temperature | 95°C |
| Collector glass | 3.2mm tempered safety glass |
| Heating | |
| Warranty | 5 years cylinder (10 with the extension kit), 15 years collectors |
Warranty & installation
We are here after you buy.
5 yearson the cylinder, serviced every 2 years
10 yearson the cylinder, with the extension kit and a yearly service
15 yearson the solar collectors
1 yearon the electrical parts
The extension kit is an overheat valve (94°C / 6 bar), a 10 bar closed expansion vessel and an expansion vessel for the closed circuit. The warranty covers parts, not labour or transport, and does not cover the collector glass.
The system must be installed by a licensed plumber. The warranty form is filled in, signed and emailed to Mastersol (info@mastersol.gr), together with proof of each service.
Warranty terms → Warranty form (PDF, in Greek) →By a partner in your area
A partner installer does the site visit, the connection and the first start-up. Ask for a quote together with the product.
Contact us →Sure about the size?
Our engineers calculate your home's heat loss and confirm the choice. The first assessment is free.
Contact us →Before installing
- LocationFor flat roofs and terraces: the low frame puts the cylinder 130 cm above the roof surface. Collectors (height × width): 1 collector, 1.5 × 1.0 m.
- PlumbingHeavy-duty brass connections. Maximum working pressure: tank 10bar, jacket 3.2bar; maximum temperature 95°C. You choose the assembly materials, with polyethylene or stainless steel pipe, when you order.
- ElectricsElectric element 3.5kw (Ø140 flange, 8 holes). Electrical parts have a 1-year warranty.
- InstallationBy a licensed plumber, with a service receipt. It is a condition of the warranty.
- ServicingEvery 2 years, replace the magnesium anode rod and the safety valves; every year for the 10-year warranty. Every year, check and top up the antifreeze.
- SummerMastersol recommends covering half of the collector area in summer, and all of it when you are away for more than 3 days.
Questions
Ask us before you buy.
Our technicians answer every question, from choosing to installing.
2610 334 389 info@climaventis.grWhich size do I need?
Mastersol sizes its systems for a normal use of 40 litres of hot water at 40°C per person. As a guide: 1 person, 100 litres with 1.5 m² anywhere in Greece. 2 people, 120 litres with 2.0 m² (1.5 m² is enough in southern Greece). 3 people, 120 litres with 2.0 m², or 160 litres with 2.0 m² in northern Greece. 4 people, 160 litres with 2.5 m² (2.0 m² in the south). 5 people, 200 litres with 3 m², or 4 m² in northern Greece. If you are not sure, call us.
How is it different from the ECO?
The frame: on the LP it is low and the cylinder reaches 130 cm above the roof surface. It suits places where height, wind or the look of the building call for a discreet installation. Mastersol gives the same factory warranties.
What does dual energy mean?
That the water is heated in two ways: by the sun and, when needed, by the 3.5kw electric element. If you want your heating boiler to heat it too, there are triple-energy models.
Does it withstand frost?
Yes. It runs on a closed circuit with antifreeze and withstands temperatures down to −47°C. The antifreeze is checked and topped up every year, depending on the area.
What warranty does it have?
5 years on the cylinder, serviced every 2 years. 10 years if you also fit an overheat valve (94°C / 6 bar), a 10 bar closed expansion vessel and a closed-circuit expansion vessel, with a yearly service. 15 years on the collectors and 1 year on the electrical parts. The warranty covers parts, not labour or transport.
What servicing does it need?
Every 2 years the magnesium anode rod and the safety valves are replaced, or every year for the 10-year warranty. Every year the antifreeze is checked and topped up. The technician signs the warranty form and gives you a service receipt.
How are delivery and installation done?
The solar water heater ships by carrier throughout Greece; you see the shipping options and cost in the cart. A licensed plumber installs it, which is also a condition of the warranty; we can suggest a partner in your area.
Complete the installation
For the 10-year warranty.
The cylinder warranty becomes 10 years with an overheat valve (94°C / 6 bar), a 10 bar closed expansion vessel and an expansion vessel for the closed circuit, plus a yearly service. Here is the Mastersol closed-circuit expansion vessel.
