Warranty 7 years Hot water cylinder for heat pumps 500 litres (2 heat exchangers) 1 / 2
Mastersol All Mastersol →
Heat pump hot water cylinder

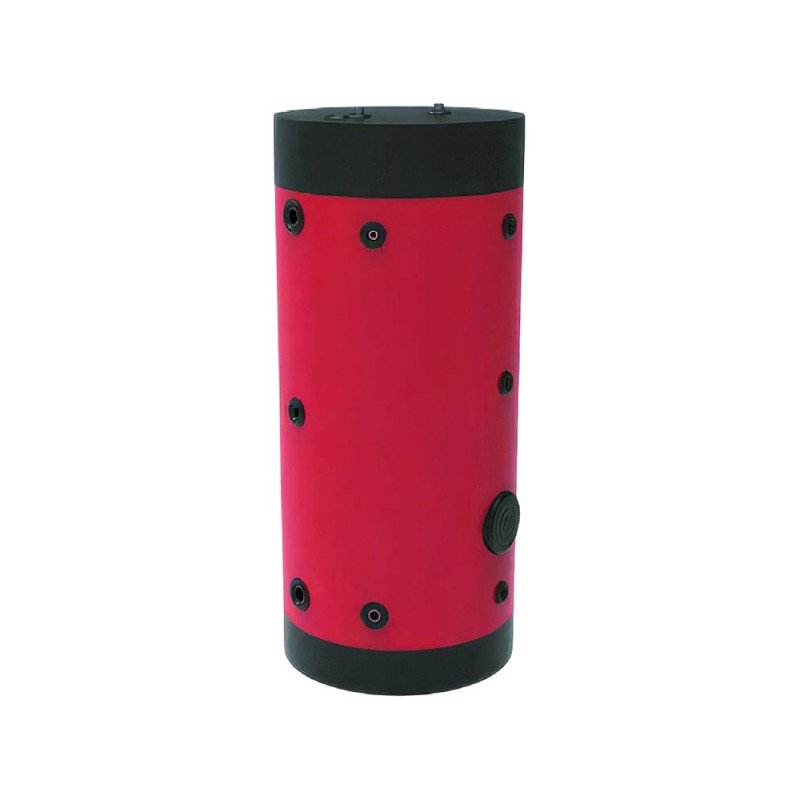

Hot water cylinder for heat pumps 500 litresCode: BHP2-500

From 200 to 1,000 litres, working pressure up to 10 bar.

Mastersol BHP2 models
1,418 €incl. VAT
In stock · delivery or pick-up in Patras
Request a quote with installation
  • Delivery across GreeceBy freight because of its weight (195 kg). The cost is shown at checkout, once you enter an address.
  • Pick-up in Patras171 Ag. Ioanni Pratsika St · Mon–Fri 08:30–17:00, Sat 09:00–14:00
  • Installation by a partnerPartner installers across Greece.
  • 7 years warranty from ClimaventisSpare parts and service directly from us.

Installer or retailer? Log in for trade prices

Description

Made for heat pumps.

Vertical hot water cylinder for heat pumps, with two fixed heat exchangers: a large-surface one for the heat pump and a second one for another source, for example solar collectors.

Inner protectionGlass enamel (EN 4753-3), with a magnesium anode
Pressure and temperatureup to 10 bar, up to 95 °C
Electric heating elementFitted on request.
7-year warrantyWith the Mastersol warranty form.
Highlights

A closer look.

From the manufacturer's drawings.

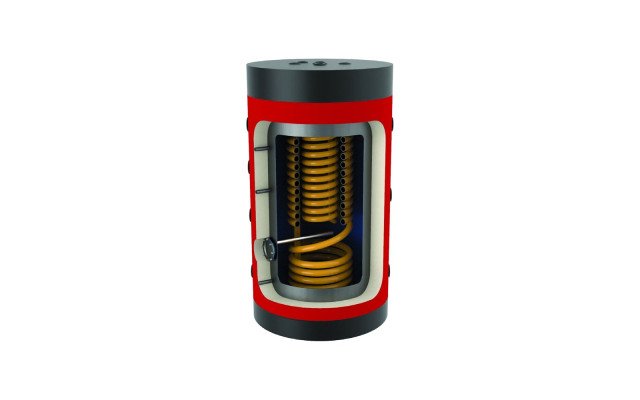

Inside

Inside

A cutaway from the manufacturer's drawings: it shows the heat exchanger, the inner protection and the insulation.

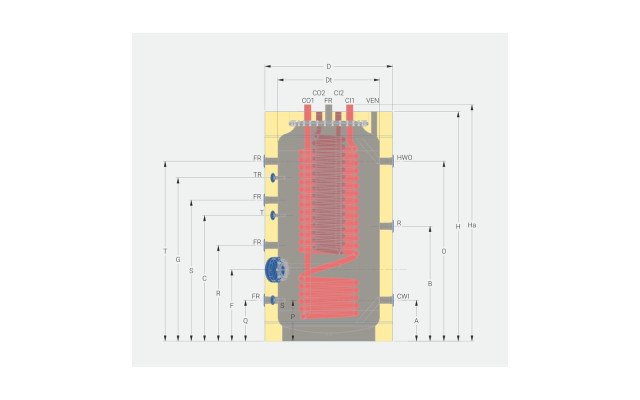

Connections and dimensions

Connections and dimensions

The manufacturer's drawing with the connection points. The dimensions of each size are in the comparison and the specifications.

Compare the models

The sizes.

5 sizes, from 200 to 1,000 litres.

Compare the models BHP2-200715 €BHP2-3001,070 €BHP2-5001,418 €This modelBHP2-7502,539 €BHP2-10002,742 €
Tank capacity200lt300lt500lt750lt1000lt
Actual volume172lt256lt423lt696lt803lt
Heat exchangers2 fixed2 fixed2 fixed2 fixed2 fixed
Heat exchanger surface2.65 m² + 1.2 m²3.45 m² + 1.51 m²3.98 m² + 2.01 m²3.98 m² + 1.65 m²5.17 m² + 1.86 m²
Heat exchanger volume22.68 lt + 5.7 lt31.75 lt + 6.84 lt39.69 lt + 9.12 lt34.02 lt + 7.271 lt45.36 lt + 9.915 lt
Heat exchanger output65.11 kW + 30.1 kW91.25 kW + 36.25 kW113.94 kW + 48.34 kW97.67 kW + 28.12 kW130.22 kW + 38.23 kW
Tank height1550 mm1620 mm1700 mm1851 mm2101 mm
Tank diameter600 mm630 mm750 mm1000 mm1000 mm
Diameter without insulation480 mm520 mm640 mm800 mm800 mm
Required height1641 mm1728 mm1838 mm2078 mm2300 mm
Net weight139 kg162 kg195 kg334 kg364 kg
Maximum working pressure10 bar10 bar10 bar10 bar10 bar
Maximum test pressure15 bar15 bar15 bar15 bar15 bar
Maximum operating temperature95 °C95 °C95 °C95 °C95 °C

Manufacturer's data, which may vary slightly. The diameter includes the insulation. "From" prices include VAT.

Technical specifications

All the numbers, in one table.

Tank
Tank capacity500lt
Actual volume423lt
Tank height1700 mm
Tank diameter750 mm
Diameter without insulation640 mm
Required height1838 mm
Net weight195 kg
Tank steelCold-rolled steel sheet DC 01 (EN 10130)
Inner tank liningGlass enamel (EN 4753-3), with a magnesium anode
Tank insulation55 mm rigid polyurethane, 52 kg/m³
Outer casingLeatherette or metal jacket
Maximum working pressure10 bar
Maximum test pressure15 bar
Maximum operating temperature95 °C
Electric heating elementOn request
Hydraulic connectionsDomestic water 1″ · heat exchanger 1 1/2″ · recirculation 1″
Heat exchangers
Heat exchangers2 fixed
Heat exchanger surface3.98 m² + 2.01 m²
Heat exchanger volume39.69 lt + 9.12 lt
Heat exchanger output113.94 kW + 48.34 kW
Warranty
Warranty7 years
PDFBoiler installation and user manualManufacturer's PDF (Mastersol), in Greek
Warranty & installation

We are here after you buy.

Warranty
7 yearsmanufacturer's warranty

The warranty requires installation following the instructions, water within drinking water limits and regular checks of the anode, where there is one. The anode is a consumable.

Warranty form (PDF, in Greek) →
Installation

By a partner in your area

A partner installer does the site visit, the connection and the first start-up. Ask for a quote together with the product.

Contact us →
Heating study

Sure about the size?

Our engineers calculate your home's heat loss and confirm the choice. The first assessment is free.

Contact us →

Before installing

  • RoomIn a closed room protected from frost, with a floor drain for any leaks.
  • DimensionsDimensions: height 1700 mm, diameter with insulation 750 mm. To stand it up you need a room height of at least 1838 mm (its diagonal).
  • WeightWeight 195 kg, without water. Allow for the water it will hold when you choose where it goes.
  • SafetyThe domestic hot water side always needs an expansion vessel, a safety valve and anode protection, as the manufacturer requires.
Questions

Ask us before you buy.

Our technicians answer every question, from choosing to installing.

2610 334 389 info@climaventis.gr
Is an electric heating element included?

No; the electric heating element is fitted on request. Ask us with your order if you want one.

Which size do I need?

It depends on your use and on the heat source. The comparison shows the data of each size; call us and we will work it out together.

What warranty does it have?

7 years, with the Mastersol warranty form you will find below.

How is it delivered?

Collect it from our shop in Patras, or we send it by carrier. If the cart does not show a shipping cost for your area or size, call us. A plumber installs it; we can suggest a partner in your area.
